| รหัสสินค้า | SKU-01462 |
| หมวดหมู่ | แผงโซล่าเซลล์ MONO |
| ราคา | 7,500.00 บาท |
| สถานะสินค้า | พร้อมส่ง |
| สภาพ | สินค้าใหม่ |
| เพิ่มเติม | ราคารวมจัดส่ง |
| ลงสินค้า | 12 ก.ย. 2561 |
| อัพเดทล่าสุด | 23 พ.ย. 2561 |
| คงเหลือ | ไม่จำกัด |
| จำนวน | ชิ้น |
|

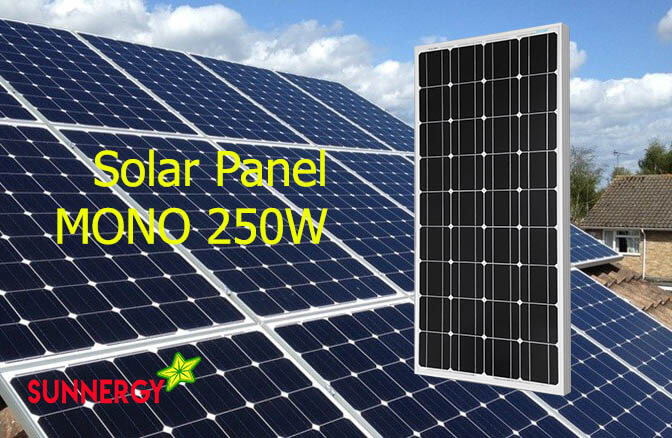

mono solar panel
ITEM NO |
250W/30V |
|
MONO or POLY |
MONO |
|
Maximum power (Wp) |
250 |
|
Maximum power voltage (V) |
30 |
|
Maximum power current (A) |
8.33 |
|
Open circuit voltage (V) |
39 |
|
Short circuit current (A) |
7.69 |
|
Number of cells (Pcs) |
72 |
|
Size of module (mm) |
1640*992*40MM (125x125mm cell) |
|
Brand Name of Solar Cells |
HT |
|
Maximum system voltage (V)
|
1000 |
|
Temperature coefficients of Isc (%) |
0.065+/-0.015%/°C |
|
Temperature coefficients of Voc (%) |
-(2.23+/-0.1)mv/ °C |
|
Temperature coefficients of Pm (%) |
-(0.5+-0.05)/ °C |
|
Temperature coefficients of Im (%) |
+0.1/ °C |
|
Temperature coefficients of Vm (%) |
-0.38/ °C |
|
Temperature Range |
-40°C~+85°C |
|
Tolerance Wattage (e.g. +/-3%) |
+/-3% |
|
Surface Maximum Load Capacity |
60m/s(200kg/sq.m) |
|
Allowable Hail Load |
steel ball fall down from 1m height |
|
Weight per piece (kg) |
24 |
|
Length of Cables (mm) |
900 |
|
Cell Efficiency (%) |
more than 15.2% |
|
Module Efficiency (%) |
more than 14% |
|
Output tolerance (%) |
+/-3% |
|
Frame (Material, Corners, etc. |
Aluminum |
|
Standard Test Conditions |
AM1.5 100mW/cm2 25’C |
|
Warranty |
1 years product warranty and 2 years 80% of power |
