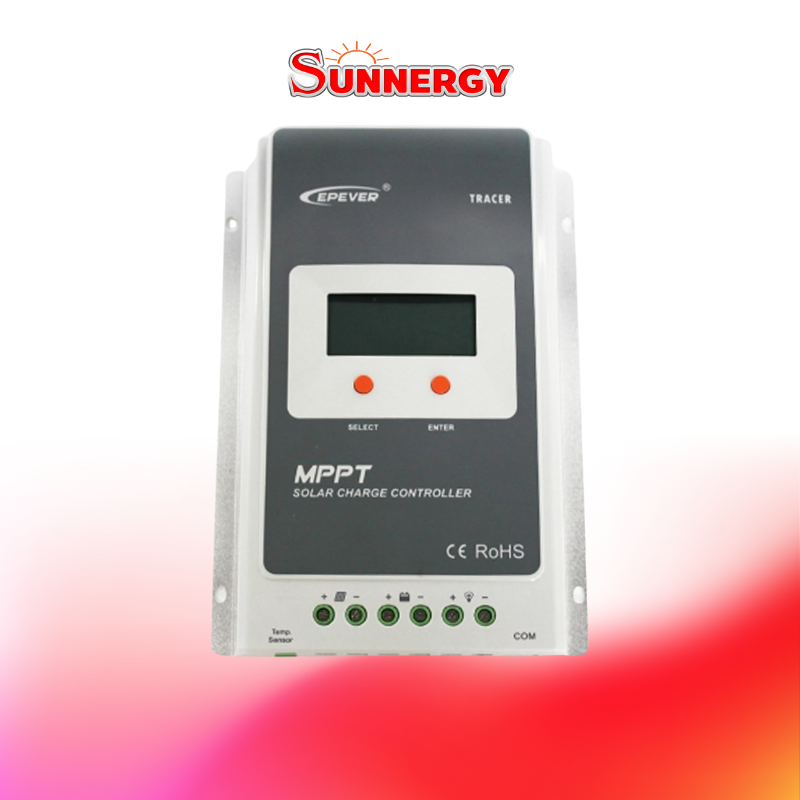

ตัวควบคุมการชาร์จแบตเตอรี่ แบบ MPPT 30A 12/24V (Max Volt Input: 100V) Tracer

Automatic Power Factor Controller Features:

•Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%.

•High quality components, perfecting system performance, with maximum conversion efficiency of 98%.

•Ultra-fast tracking speed and guaranteed tracking efficiency.

•Accurately recognizing and tracking of multiple power points.

•Reliable automatic limit function of maximum PV input power, ensuring no overload under any circumstance.

•Wide MPP operating voltage range.

•12/24VDC automatically identifying system voltage.

•LCD panel display design, dynamically displaying tool’s operating data and working condition.

•Multiple load control modes: manual control, light ON/OFF, light On+Timer and test mode.

•Support 3charging preprogram options: Sealed, Gel, Flooded.

•Battery temperature compensation function.

•Real-time energy statistics function.

•With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations.

•Available for network module (eBox--01)with protocol TCP/UDP/SNMP, to realize connection to internet.

•Support software upgrade.

Electronic protections:

• PV reverse polarity protection

• PV short circuit protection

• PV over current alarm protection

• Battery overcharge protection

• Battery over discharge protection

• Battery reverse polarity protection

• Load short circuit protection

• Load overload protection

Figure 1-1 Tracer-A Series Characteristics

1 –Mounting hole sizeΦ5

2 –Select Button

3 –Connection for a RTS (Remote Temperature Sensor) to remotely detect battery temperature.

4 –Solar Module Terminals: Connect solar modules.

5 –Battery Terminals: Connect batteries.

6 –Load Terminals: Connect loads.

7 –RS-485 Port (RJ45 interface): Connect with PC or MT50 to monitor or update firmware.

8 –Product shell

9 –Enter Button

10 – LCD

Technical Specifications

• Electrical Parameters
