รหัสสินค้า | 0210000034 |
หมวดหมู่ | โซล่าชาร์จเจอร์ PWM Solar Charge Controller |
ราคา | 850.00 บาท |
น้ำหนัก | 150 กรัม |
สถานะสินค้า | พร้อมส่ง |
สภาพ | สินค้าใหม่ |
เพิ่มเติม | ราคาไม่รวมค่าจัดส่ง |
ลงสินค้า | 1 ส.ค. 2560 |
อัพเดทล่าสุด | 3 ธ.ค. 2561 |
คงเหลือ | ไม่จำกัด |
จำนวน | ชิ้น |
Solar Charge Controller Parameters:
Item
|
solar charge controller
|
||||
MODEL
|
1210
|
1220
|
1230
|
4820
|
4830
|
Batt voltage
|
12V/24V auto
|
48V
|
|||
Charge current
|
10A
|
20A
|
30A
|
20A
|
30A
|
Discharge current
|
10A
|
20A
|
30A
|
20A
|
30A
|
Max Solar input
|
<50V
|
<80V
|
|||
Equalization
|
BO1 Sealed BO2 Gel BO3 Flood
|
||||
14.4V 14.2V 14.6V
|
|||||
Float charge
|
13.7V(default, adjustable)
|
||||
Discharge stop
|
10.7V(default, adjustable)
|
||||
Discharge reconnect
|
12.6V(default, adjustable)
|
||||
USB output
|
5V/3A
|
||||
Self-consume
|
<10mA
|
||||
Operating temperature
|
-35~+60 ℃
|
||||
Note:all red color voltage X2, X4 while using 24V, 48V system
|
Clear display, the system operating state at a glance. Support lithium batteries, lithium iron phosphate batteries, lead-acid batteries, suitable for a variety of different applications. Various control parameters can be set up easily and flexibly to meet the needs of customers.
Upgrade thickening, MOS tube close to the heat sink design, heat effect increased by 30%, can be stable operation at the temperature of 60 degrees, operation and stability
5V/3A, can be connected to the phone, tablet charging

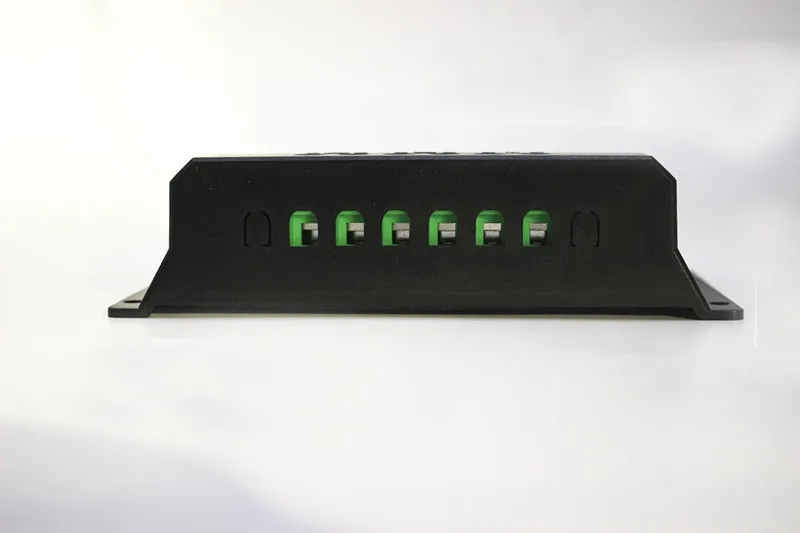

Large section of the wiring port, wiring is convenient, effectively reduce the circuit voltage drop, reduce wear. Upgrade the wiring port, can be connected to a larger square wire
Using high quality components, better heat dissipation, higher protection level, more stable operation, refused to crash.
